Hardware

    The SenseStack Base Device

    One sealed unit beside the door. It reads the cabin, watches door events and shows a single readiness state your team can trust — indoors, outdoors, steam or spray.

    SenseStack Base Device: circular sealed unit with brushed alloy face plate and cable gland
    Base Device, face plate up — engraved SenseStack mark, sealed gland for the probe lead.

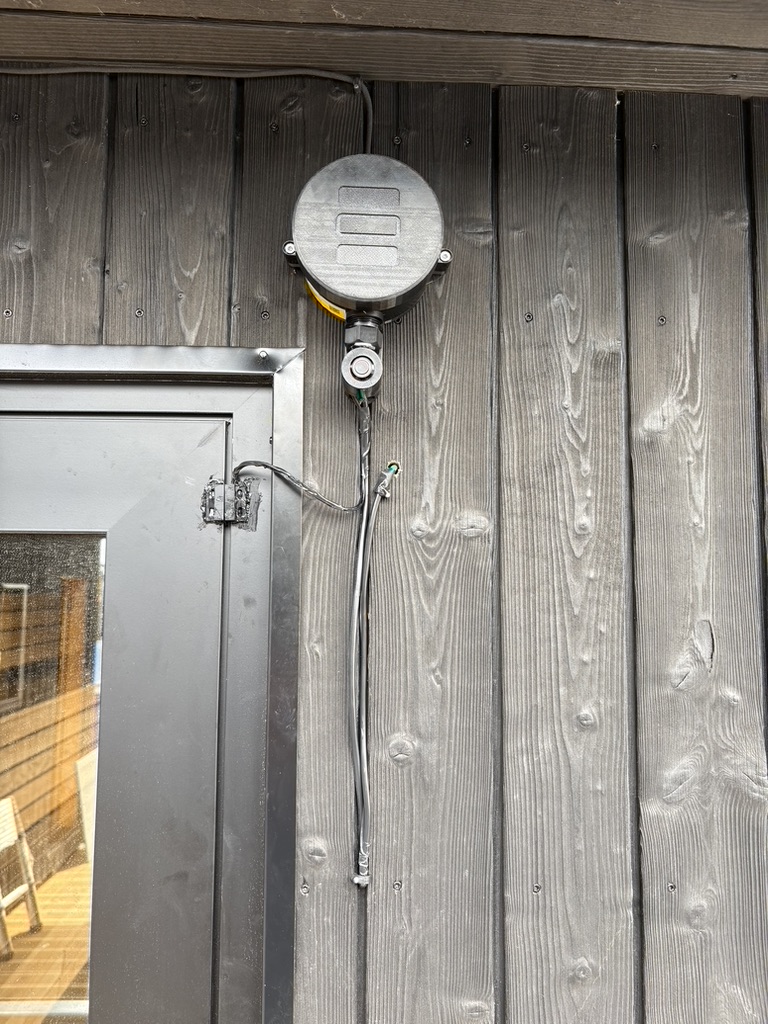

    SenseStack Base Device surface-mounted on a timber sauna wall beside the door, with probe and door sensor cabling routed down the frame
    Installed on a live Irish pilot site — surface-mounted on the cabin wall beside the door, cabling routed down to the frame.

    Installed in under 30 minutes

    Two screws into the frame, the temperature probe inserted through an 8 mm hole drilled at head height inside the cabin, the door reed sensor mounted on the edge of the door frame, and a low-voltage power lead. Nothing is spliced into your heater, controller or plumbing — so nothing about your warranty or certification changes.

    • Surface mount, no cabinet cut-outs
    • Probe inserted through an 8 mm hole at head height, reading what guests feel
    • Door reed sensor fixed to the door frame with silicone and screws if needed
    • Founder-installed on every Irish pilot site

    What it does

    Probe-accurate readings

    The sealed high-temperature probe is inserted through an 8 mm drilled hole at head height in the cabin, so readiness reflects the temperature guests actually experience on the bench.

    Readiness at a glance

    The circular face shows one state: Heating, Ready, Recovering or Attention. Staff read it from across the deck.

    Resilient connectivity

    Wi-Fi with on-device buffering. If the link drops, readings queue locally and sync when it returns.

    Battery fallback

    Short power interruptions don't create data gaps or false offline alarms.

    Simple install

    Surface-mounted beside the door, with the door reed sensor fixed to the edge of the door frame using silicone and screws where needed. No heater rewiring, no plumbing.

    Built for the environment

    Rated for steam, splash, cold plunge spray and outdoor Irish weather.

    At a glance

    Form factor
    Circular puck, ~95 mm diameter
    Enclosure
    Sealed polymer body, brushed alloy face plate
    Mounting
    Two-screw surface mount, wall or frame
    Connectivity
    Wi-Fi 2.4 GHz, local buffering on dropout
    Power
    Low-voltage mains adapter with battery fallback
    Sensing
    Temperature probe through an 8 mm hole at head height + door reed sensor on the door frame
    Display
    240 x 240 circular readiness ring
    Install time
    Under 30 minutes, no plumbing or heater rewiring

    Pilot hardware specification. Final production figures are confirmed at install.

    Know your environment

    Pilot installs are running across the Republic of Ireland, fitted in person.
